DEGAUSSING OF PIPE

ULTRADEMAG

UTE “ULTRADEMAG” is intended for pipe demagnetization along the length with the combined alternating damped external magnetic field with values up  to 10 ... 15 Gs (1,0 .. 1,5 mT).

GALLERY

  • ULTRA-DEMAGNET
    ULTRADEMAG
    ULTRA-DEMAGNET
    ULTRADEMAG
    ULTRA-DEMAGNET
    ULTRADEMAG

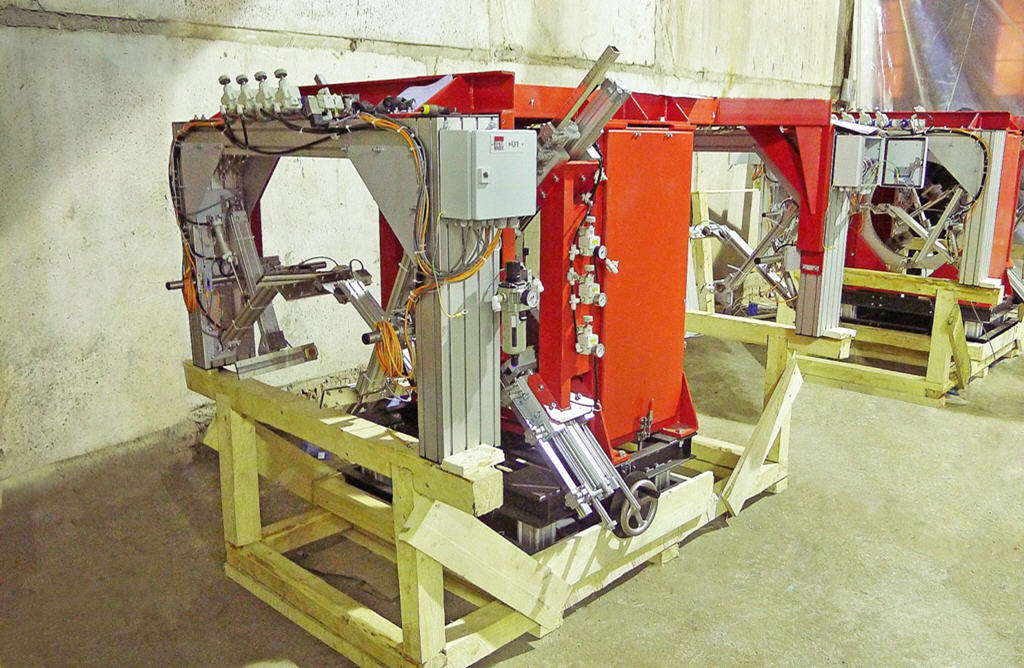

    Модули ULTRADEMAG перед отправкой Заказчику
    Overview of the Equipment ULTRADEMAG before a shipment to the Customer

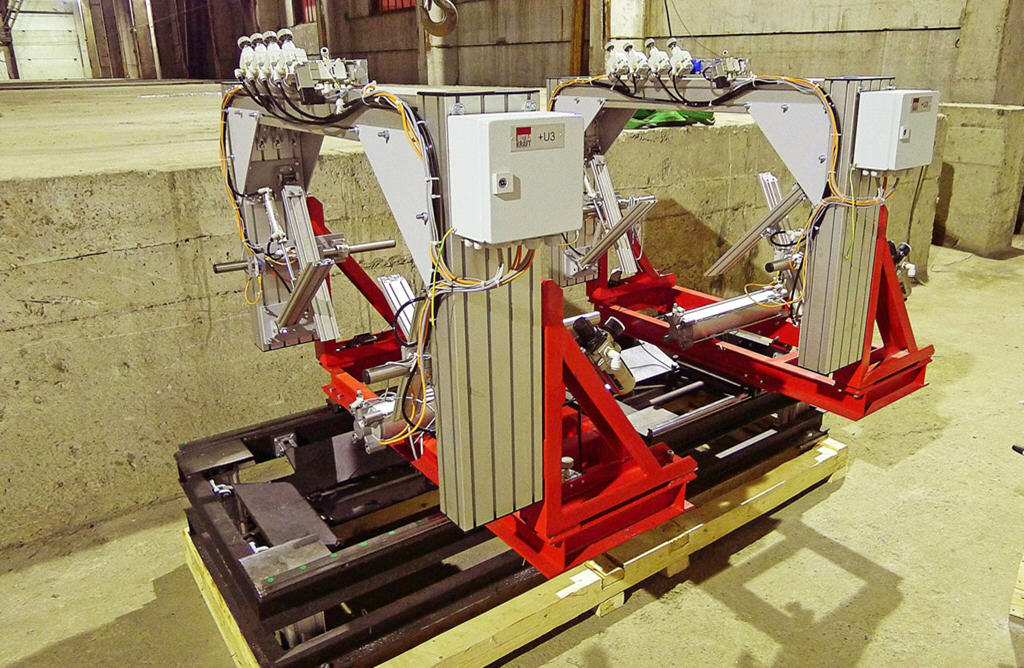

    Модуль ULTRADEMAG перед отправкой Заказчику
    Overview of the Equipment ULTRADEMAG before a shipment to the Customer

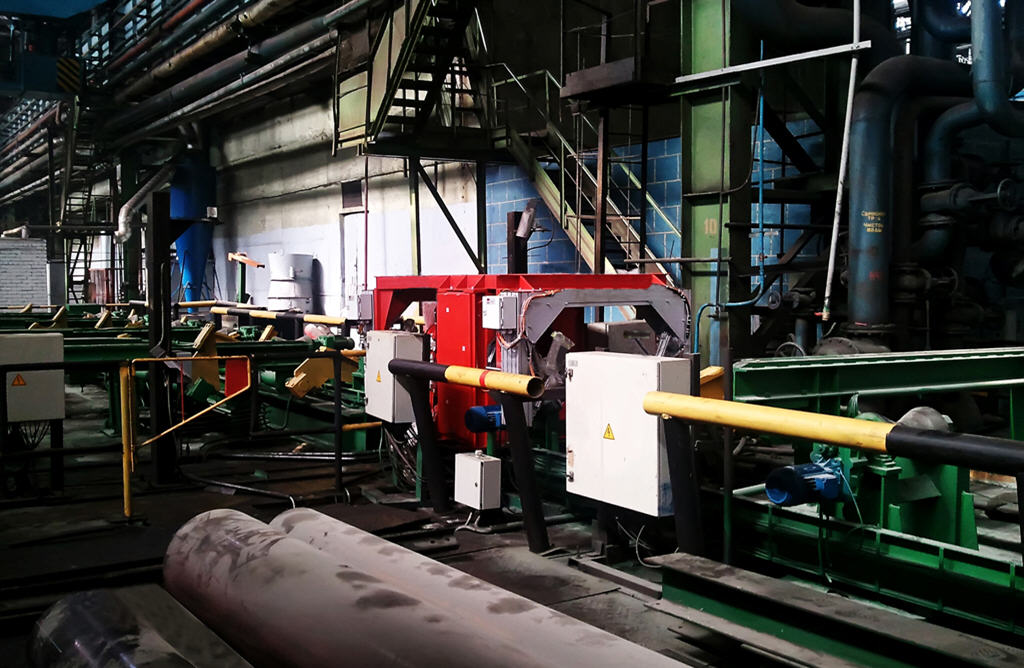

  • Общий вид оборудования ULTRADEMAG
    Overview of the Equipment ULTRADEMAG

MAIN ADVANTAGES OF EQUIPMENT

  • The Equipment provides demagnetization of the pipes along the length, including pipe end areas up to the level 10 .. 25 Gs (Gauss);
  • The Equipment provides the automatic measurement of the initial magnetization (at the input to the demagnetization device) and the residual magnetism at the output of the demagnetization device;
  • Auto selection of demagnetization mode, depending on the initial magnetization of the pipe;
  • The forming of the demagnetization protocol and residual magnetism schedules along the pipe length with the ability to save the results, store and transmit such data in the information network of the upper level

MAIN ADVANTAGES OF EQUIPMENT

Demagnetization object

seamless and welded pipes

Diameter  203 – 630 mm
Wall thickness up to 30 mm

Transportation speed of pipe

 up to 1 m/s

Residual magnetism level after demagnetization

10...15 Gs (1,0…1,5 mT)

(depends on magnetic properties metal)

QUALITY ASSESSMENT

Demagnetization is carries out up to the residual magnetism level according to the following standards: GOSTR 52079, GOSTR 53366, API 5L, API 5CT, DNV-OS-F101, ISO3183, ShellTechnicalSpec, ExxonMobil and analogues to them.

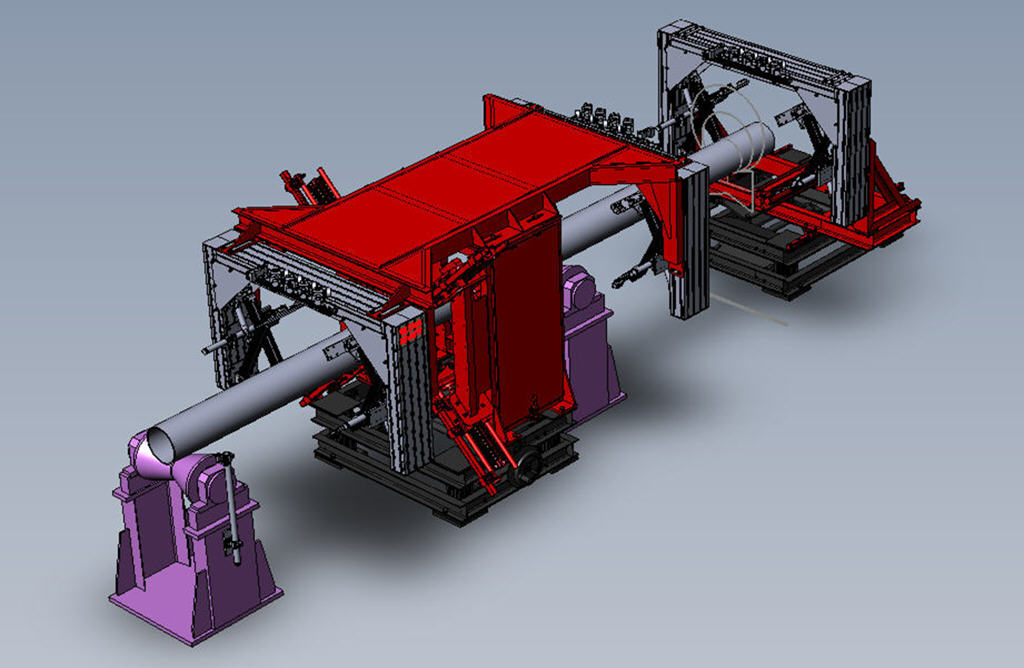

COMPONENT PARTS AND LOCATION OF THE EQUIPMENT IN LINE

Установка ULTRADEMAG

ULTRAKRAFT, JSC

ZAO ULTRAKRAFT (Ultrakraft, JSC) is a russian engineering company. The main professional field is development and applying of advanced solutions in the field of nondestructive testing and automation.
